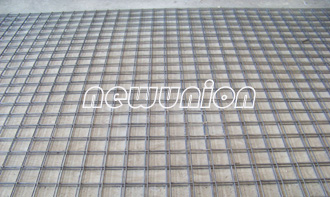

| Welded Wire Mesh Art.No.NU04219 |

Products details:
Name: Welded Wire Mesh Art.No.NU04219
Material: carbon steel wire, stainless steel wire, galvanized steel wire, hot-dipped galvanized steel wire
Finish: Electric galvanized, hot-dip galvanized, stainless steel or PVC coated
Uses:Welded Wire Mesh with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields
Size: all size is available
Payment terms: BY T/T, L/C
Shipment: within 30 days on receipt of payment

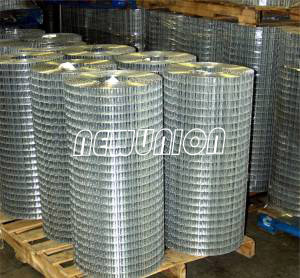

Package: in rolls wrapped by waterproof paper or in cartons or according to customer's requirement
Reference sizes and specification:
|
Specification List of Welded Wire Mesh |
|
Mesh |
Wire Diameter(BWG/SWG) |
|
In inch |
In metric unit(mm) |
|
1/4¡±X1/4¡± |
6.4mm x 6.4mm |
22,23,24 |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21 |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
|
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
|
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
|
Galvanized Fencing Mesh |
|
Mesh |
Wire Diameter(BWG/SWG) |
|
In inch |
In metric unit(mm) |
|
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
|
3" x 3" |
75mm x 756mm |
2.67mm,2.41mm,2.11mm,1.83mm,1. |
|
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
|
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
|
PVC Coated Welded Mesh |
|
Mesh |
Wire Diameter(BWG/SWG) |
|
In inch |
In metric unit(mm) |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
|
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
|
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 | |
|
|
|
